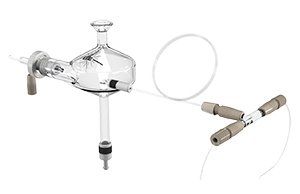

HydraMist Kit (KT-1157)

The Glass Expansion HydraMist is a sensitive, simple-touse spray chamber for Inductively Coupled Plasma (ICP) that supports simultaneous operation of conventional pneumatic nebulization and cold-vapor/hydride generation.

Cold vapor generation can provide more than 10-fold improvement in sensitivity on ICP for elements such As, Sb, Se, Tl and Hg. The generation of volatile species of these elements results in increased analyte loading to the analytical plasma giving lower detection limits.

HydraMist FLYER

Includes:

0.76-BLK-F: Contour Flared End PVC Pump Tube 2tag 0.76mm ID Black/Black (1 unit)
1.02-WHT-F: Contour Flared End PVC Pump Tube 2tag 1.02mm ID White/White (1 unit)
3.17-BLKW-L: PVC Pump Tube Long 2tag 3.17mm ID Black/White (1 unit)
70-803-1439: Helix CT Locking Screw with Seal
70-803-1808: Trident Connector
60-808-1187: Internal Standard Sample Probe
70-803-1350: Ratchet Connector
60-703-1119: CT Mixing Chamber

Nebulizer not included.

Replacements:

GAZ-08-4: UniFit-08-4 Assembly (PKT. 4)

UFT-16-75: UniFit with 1/16 OD X 0.75mm ID x 700mm long sample tube (PKT. 3)

70-803-0749: Ferrule 1/16 (PKT. 10)

70-803-1871: Connector Tube with 1/4-28 fitting 0.5mm x 700mm (PKT. 3)

70-803-1870: Connector Tube with 1/4-28 fitting 0.25mm x 700mm (PKT. 3)

70-803-2078: UniFit Cap (PKT 10)
