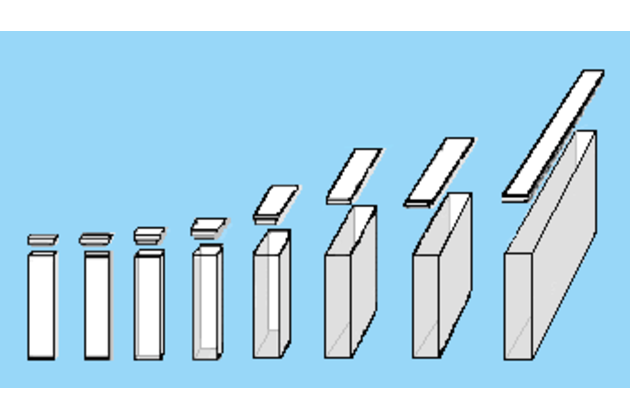

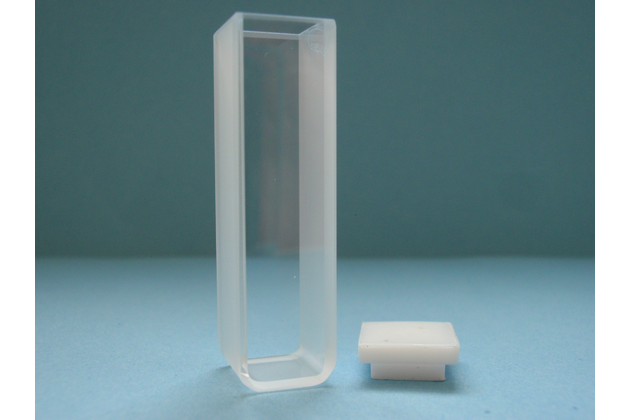

Cell, Type 1 – Standard Rectangullar, Quartz (Spectrosil, Suprasil), 5 mm (1-Q-5)

Opt. length (mm)

Volume

(ml)

Cat. no.

Cat. no.

Cat. no.

1

0,4

1-G-1

1-Q-1

1-I-1

2

0,7

1-G-2

1-Q-2

1-I-2

5

1,7

1-G-5

1-Q-5

1-I-5

10

3,5

1-G-10

1-Q-10

1-I-10

20

7,0

1-G-20

1-Q-20

1-I-20

30

10,5

1-G-30

1-Q-30

1-I-30

40

14,0

1-G-40

1-Q-40

1-I-40

50

17,5

1-G-50

1-Q-50

1-I-50

100

35,0

1-G-100

1-Q-100

1-I-100

Material

Material Code

Transmittance
> 80% (nm)

Wavelength Range (nm)

Optical Glass

G

360 – 2500

365 – 2300 (VIS)

Quartz – Spectrosil, Suprasil

Q

180 – 2600

200 – 2500 (UV)

Quartz – Infrasil

I

220 – 3800

225 – 3600 (NIR)
