SNOM cantilever probes

SNOM cantilever probes. 10 separated probes per package.

Parameters:

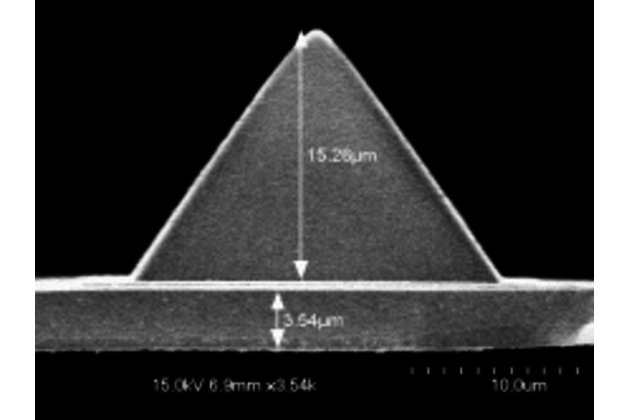

Shape: Pyramidal

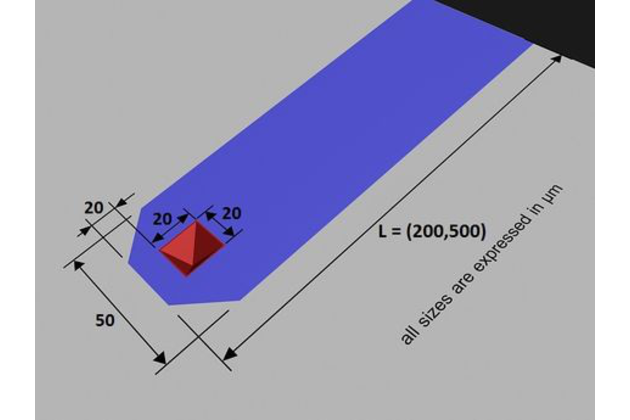

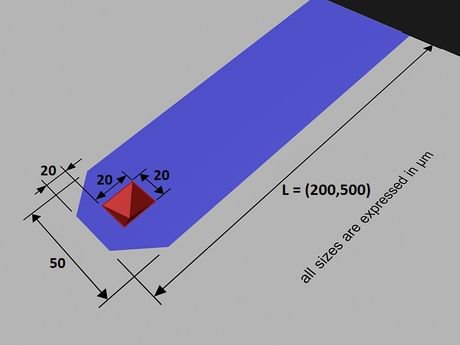

Base dimensions: 20x20x13

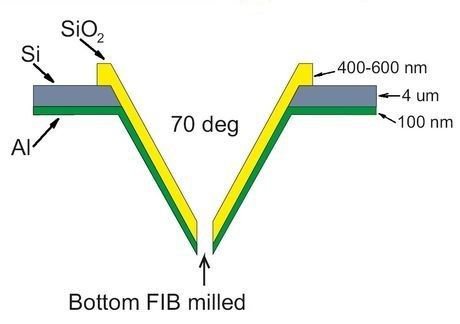

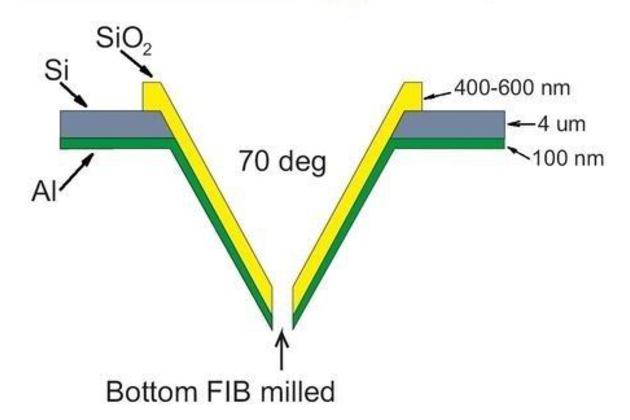

Pyramidal angle: 70 degrees

Pyramide material: SiO2

Thickness of SiO2: 400-600 nm

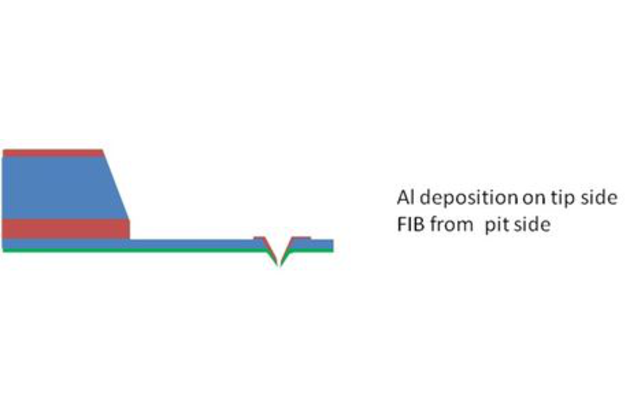

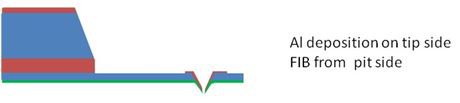

Coating of the tip: Al

Thickness of Al coating: 100 nm

Aperture size: 150 ± 25 nm

Variants:

SNOM_C/10 - for contact mode, resonance frequency 15 - 27 kHz, force constant 0,4 - 2,3 N/m

SNOM_NC/10 - for semicontact mode, resonance frequency 88 - 180 kHz (typical 130 kHz), force constant 5,9 - 39 N/m (16,5 N/m)
